🌊 How Do Radios, Wi-Fi, and Satellites Talk to Us? 🛰️
Discovering the Magic of Invisible Radio Waves!
📅 13 November
👤 Presenter: Timur
🤔 What Are Radio Waves?
Imagine throwing a stone into a pond... 💧
Radio waves are like invisible ripples in the air!
They travel through space at the speed of light ⚡ (300,000 km per second!)
🌈 The Electromagnetic Spectrum
Radio waves are part of a BIG family of waves we can't see!
🎵 Different Frequencies = Different Jobs!
AM Radio
535-1605 kHz
Long waves for music and talk shows!
FM Radio
88-108 MHz
Better quality music!
TV Broadcast
54-806 MHz
Your favorite shows!
Mobile Phones
800-2600 MHz
Calls and texts!
Wi-Fi
2.4 & 5 GHz
Internet at home and school!
Satellites
1-40 GHz
GPS, weather, and TV from space!
🎛️ Change the Frequency
📻 AM Radio
535 kHz
🔐 How Do We Put Information on Radio Waves?
Radio waves are like carrier trucks 🚚 - but how do we load information onto them?
Two Main Ways to Code Information
FM Radio
Frequency Modulation
Music or audio signal directly changes the frequency of the radio wave ⚡
Waves get closer or farther
Digital
0s and 1s on Radio Waves
Uses 0s and 1s (binary code) 🔢
Frequency Shift Keying:
Low freq
High freq
💻 How Digital Modulation Works
Let's see how your phone and Wi-Fi send data using 0s and 1s! 📱
Step 1
Your message becomes 0s and 1s
Step 2
Each 0 or 1 changes the wave's frequency or phase
Step 3
Device reads the pattern back!
📊 Example: Sending "1 0 1"
Fast ⚡
Slow 🐢
Fast ⚡
The wave goes: Fast → Slow → Fast!
This is how your phone, Wi-Fi, and modern satellites send data! 🚀
👮 Why Do We Need Rules?
❌ Without Rules
Everyone talking at once! Nothing works! 😵
✅ With Rules
Everyone has their own space! Everything works! 😊
🌍 Meet the ITU - The Radio Wave Traffic Controllers!
ITU
International Telecommunication Union
📅 Founded in 1865
One of the oldest international organizations!
🏛️ Part of the United Nations since 1947
What Does the ITU Do?
Makes rules so everyone can share the radio spectrum fairly
Allocates frequencies and orbital positions
Helps 194 countries work together so signals don't interfere
Plans for new technologies like 5G and future satellites
Think of ITU as the "traffic police" for invisible radio waves! 👮♀️
📜 ITU Through History
The ITU has been organizing global communications for over 150 years! 🎉
1865
Started as International Telegraph Union
Helping countries connect by telegraph!
1906
First Radio Conference
Countries agreed on radio rules for the first time!
1932
Became ITU
Now covering ALL telecommunications!
Today
Manages radio spectrum for the whole world!
194 countries working together! 🤝
🛣️ The Radio Spectrum is Like a Highway!
Each "lane" is a different frequency, and ITU makes sure no one crashes! 🚦
📈 Evolution of Frequency Allocations
As technology grew, managing radio spectrum became exponentially more complex! 📊

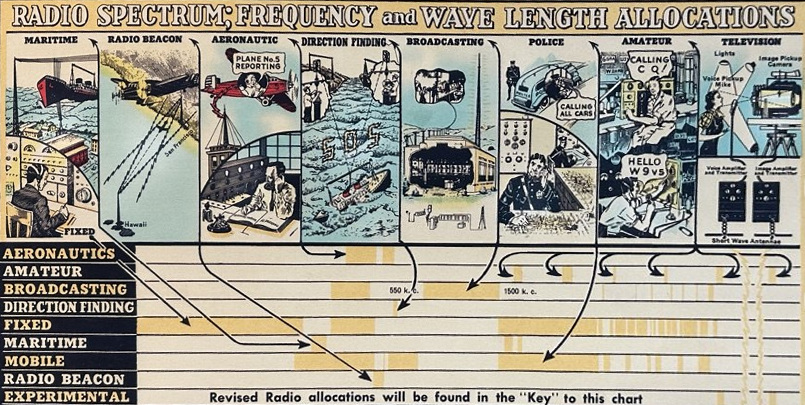

📻 1940s
Simple allocation chart
Few radio services
Basic regulations 📋
📡 TODAY (2025)
ITU Radio Regulations
📄 165 pages
📏 Each page: 14 cm wide
📐 Total width: 25 METERS!
Manages:
Hundreds of services
Thousands of frequencies
194 countries 🌍
💡 To visualize: If you laid out all 165 pages side by side, they would stretch 25 meters - longer than a basketball court! 🏀
🛰️ Satellites - Our Helpers in Space!
Satellites are like robots in space that help us every day! 🤖
🌍 Two Main Types of Satellite Orbits
🌐 GSO
Geostationary Orbit
35,786 km high above Earth
Stays in one spot!
🚀 LEO
Low Earth Orbit
160-2,000 km above Earth
Moves around quickly!
🗺️ GNSS - Finding Your Way with Satellites!
GNSS stands for Global Navigation Satellite System
These satellites help you find where you are on Earth! 🌍
🌟 Major GNSS Systems Around the World
GPS
United States
31 satellites • Started in 1978
The most famous! Used worldwide 🌎
GLONASS
Russia
24 satellites • Started in 1982
Works great in northern regions 🧭
Galileo
European Union
30 satellites • Started in 2016
Super accurate for everyone! 🎯
BeiDou
China
35 satellites • Started in 2000
Covers the whole world now! 🌏
💡 How it works: Your phone talks to at least 4 satellites to figure out exactly where you are!
🌐 GSO Satellites - High in the Sky!
What Makes GSO Special? 🤔
GSO satellites orbit at exactly 35,786 km above the equator.
At this height, they move at the same speed as Earth rotates! 🌍
This means they stay above the same spot all the time!
Always watching the same area!
📡 What Do GSO Satellites Do?
TV Broadcasting
Brings TV channels to your home from space!
Weather Monitoring
Watches clouds and weather patterns all day!
Communications
Helps phone calls and internet reach remote places!
💡 Fun Fact: A GSO satellite takes exactly 24 hours to complete one orbit - the same as Earth's rotation! 🔄
🚀 LEO Satellites - Closer to Earth!
What Makes LEO Special? 🤔
Super fast orbit!
LEO satellites orbit between 160-2,000 km above Earth.
They're much closer than GSO satellites!
They zoom around Earth in just 90-120 minutes! 🏃♂️
💡 Why LEO is better for internet: Closer satellites = faster signals = less delay when you click! ⚡
🌟 Famous LEO Satellite Projects
Starlink (SpaceX)
Thousands of satellites providing internet everywhere on Earth! Even in remote areas! 🏔️
Goal: 42,000 satellites!
OneWeb
648 satellites bringing internet to schools, hospitals, and communities worldwide! 🏥🏫
Helping connect remote areas globally!
International Space Station (ISS)
A huge space laboratory with astronauts living and working!
Orbits at 408 km high! 👨🚀
🌍 Real-Time Satellite Tracking
See all satellites and objects orbiting Earth right now! 🛰️✨
All Earth Orbits
View satellites in LEO, MEO, GEO & HEO in 3D!
satellitemap.space
LEO Focus
Detailed view of Low Earth Orbit satellites only!
platform.leolabs.space
💡 Both visualizations show real-time satellite positions - click to explore!
📱 The Amazing Evolution of Personal Devices!
In the past, you needed many different devices to do what your smartphone does today! 🤯
📅 Then vs Now 📱
📼 THE PAST
Computer
~10-20 kg
Phone
~200g
GPS
~300g
Camera
~500g
MP3
~100g
Wi-Fi
Separate
Total: ~11+ kg! 😰
📱 TODAY
ONE SMARTPHONE!
✅ Computer
✅ Phone
✅ GPS
✅ Camera
✅ Music
✅ Wi-Fi
+ MUCH MORE!
Only ~200g! 🎉
⚡ Smartphones Are Much More Powerful!
Speed
Modern phones are 1000x faster than computers from 20 years ago!
Storage
Can store millions of photos and thousands of songs!
Battery
Lasts all day doing everything those old devices did!
💡 Amazing Fact: A modern smartphone has more computing power than all of NASA's computers used to send astronauts to the Moon in 1969! 🌙🚀
🎉 Amazing Radio Wave Facts!
Radio waves travel at 300,000 km per second - that's super fast!
Radio waves from Earth take about 1.3 seconds to reach the Moon!
Radio was invented by scientists like Alexander Popov and Guglielmo Marconi in the 1890s!
There are over 8,500 satellites orbiting Earth right now!
Your phone can switch between different frequencies hundreds of times per second!
Radio waves can travel around the Earth by bouncing off the atmosphere!
🎮 Quiz Time! Test Your Knowledge!
Let's see how much you've learned! Click on your answer! 🎯
Question 1: Radio Waves
How fast do radio waves travel?
100 km per hour
1,000 km per hour
300,000 km per second
10,000 km per second
🎮 Quiz Time! Question 2
Question 2: Satellites
Which type of satellite stays above the same spot on Earth?
GSO Satellite
35,786 km high
LEO Satellite
160-2,000 km high
Moon Satellite
384,000 km high
Space Station
408 km high
🎮 Quiz Time! Question 3
Question 3: ITU
What does the ITU do?
Makes pizza for everyone
Manages radio spectrum so devices don't interfere
Creates video games
Builds cars and roads
🎮 Quiz Time! Question 4
Question 4: GNSS Systems
How many satellites does your phone need to talk to for accurate location?
Just 1 satellite
2 satellites
At least 4 satellites
10 satellites
🎮 Quiz Time! Question 5
Question 5: Digital Communication
In digital transmission, what do computers use to send data?
Colors and shapes
0s and 1s (binary code)
Letters and numbers only
Musical notes
📝 What Did We Learn?
Radio waves are invisible waves that carry information through the air
Different frequencies are used for radio, TV, phones, Wi-Fi, and satellites
The electromagnetic spectrum is like a rainbow of invisible waves
The ITU makes sure everyone can share the spectrum without interfering
Radio waves travel at the speed of light and can reach space!
🎉 Thank You! 🎉
🌟 Now you know how the invisible world of radio waves works! 🌟
Next time you use Wi-Fi, watch TV, or make a phone call, remember the amazing invisible waves carrying your messages! 📡
Questions?
🎮 Want to Learn More About Space?
We learned about satellites orbiting Earth, but did you know there's also space debris up there? 🛰️💥
Play Space Debris Removal Game!
Help clean up space by removing debris! Learn how we protect our satellites and keep space safe for everyone! 🌍✨
🌐 aleste.net
💡 Did you know? There are over 34,000 pieces of space debris larger than 10 cm orbiting Earth right now!
